Bone Bonding — the next level of osseointegration

With the new Ponto BHX Implant, the Ponto system offers even greater biomechanical fixation. It builds on the well-known benefits of the Wide Ponto implant by combining the high initial stability of proven OptiGrip™ geometry with a new laser-ablated surface, for fast and strong osseointegration.



Stronger than the bone itself

The new Ponto BHX Implant uses a Biohelix™ surface modification created by an oscillating laser beam. It has been shown that this new Biohelix™ surface increases the strength of the bone-to-implant interface by more than 150%, making it stronger than the bone itself.

Using unique laser ablation technology that locally heats and melts the titanium at the root of the thread, the surface of the implant takes on a three-level surface topography. The resulting macro-, micro- and nanostructures are designed to match the topography of bone for improved bone bonding.

Implant

  • Macro implant - bone bonding

    Macro

  • Micro implant - bone bonding

    Micro

  • Nano implant - bone bonding

    Nano

Bone structure

  • Mature bone - bone bonding

    Mature bone

  • Osteocyte/Osteoblast - bone bonding

    Osteocyte/Osteoblast

  • Mineralised bone - bone bonding

    Mineralized bone

The new Bone Bonding implant Ponto BHX takes Bone Bonding to the next level: Faster, stronger and more stable

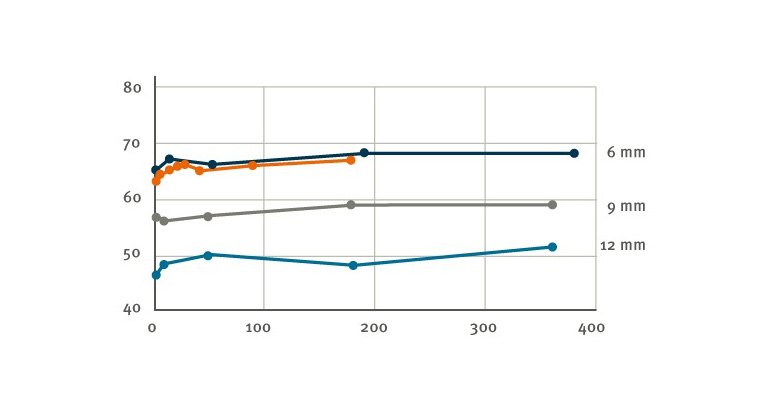

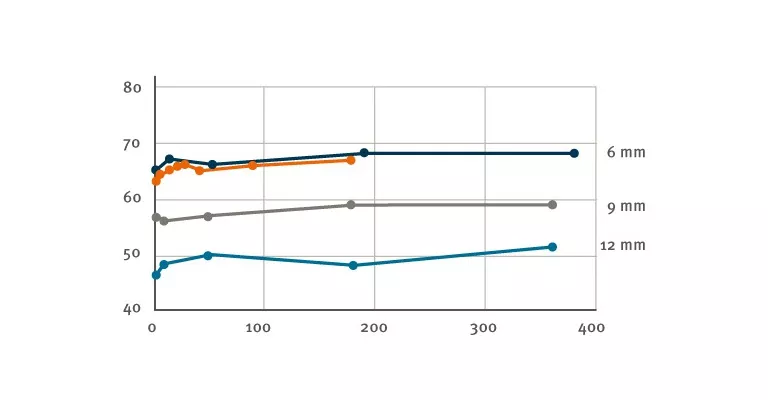

In addition to the new Biohelix™ surface, the Ponto BHX Implant incorporates proven OptiGrip™ geometry. Used for four years in wide-diameter Ponto implants, this has been shown to create the highest initial stability of all bone anchored hearing implants. What’s more, the level of stability is maintained over time.

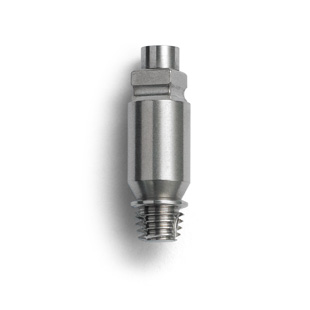

  • Ponto BHX implant 3mm

    Two-stage surgery

    Ponto BHX Implant, 3 mm

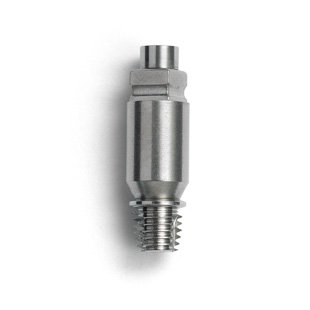

  • Ponto BHX implant 4mm

    Two-stage surgery

    Ponto BHX Implant, 4 mm

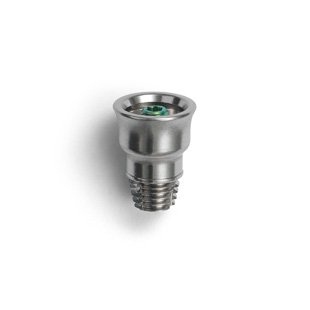

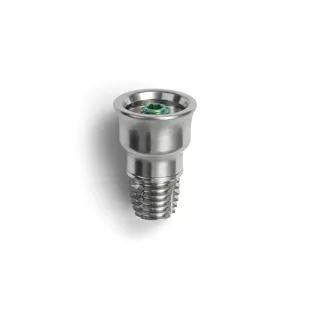

  • Ponto BHX implant 3mm with abutment 6mm

    Single-stage surgery

    Ponto BHX Implant, 3 mm; with abutment, 6 mm

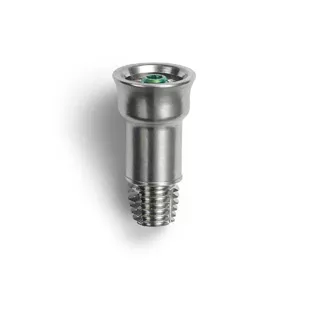

  • Ponto BHX implant 3mm with abutment 9mm

    Single-stage surgery

    Ponto BHX Implant, 3 mm; with abutment, 9 mm

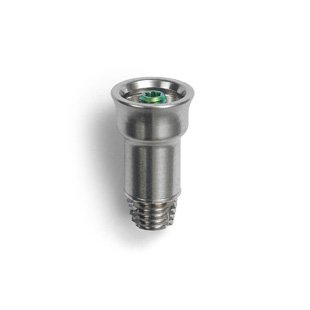

  • Ponto BHX implant 4mm with abutment 6mm

    Single-stage surgery

    Ponto BHX Implant, 4 mm; with abutment, 6 mm

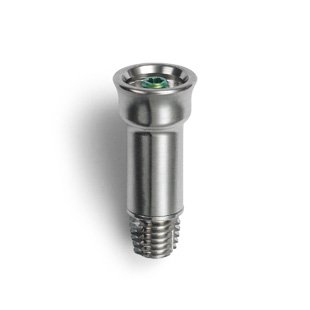

  • Ponto BHX implant 4mm with abutment 9mm

    Single-stage surgery

    Ponto BHX Implant, 4 mm; with abutment, 9 mm

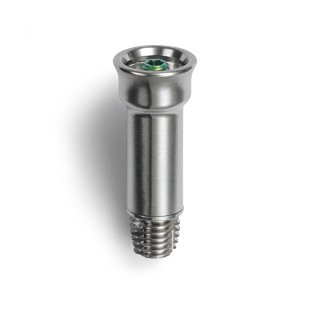

  • Ponto BHX implant 4mm with abutment 12mm

    Single-stage surgery

    Ponto BHX Implant, 4 mm; with abutment, 12 mm

  • Ponto BHX implant 4mm with abutment 14mm

    Single-stage surgery

    Ponto BHX Implant, 4 mm; with abutment, 14 mm
